센서 디바이스로부터 수집된 데이터 송수신을 위해 최적화된 통신 인프라 장치를 제작하여 통신망을 구축합니다.

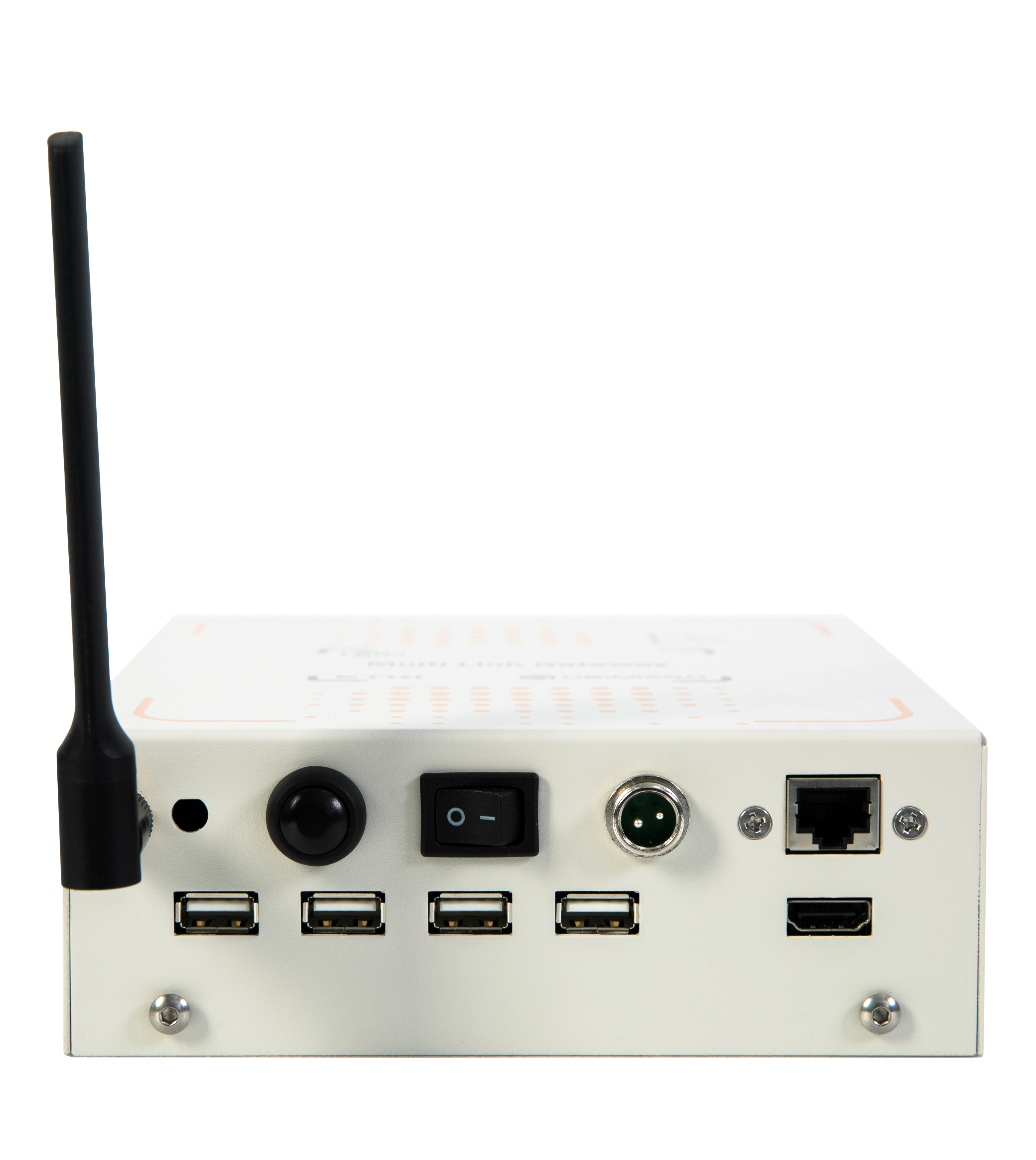

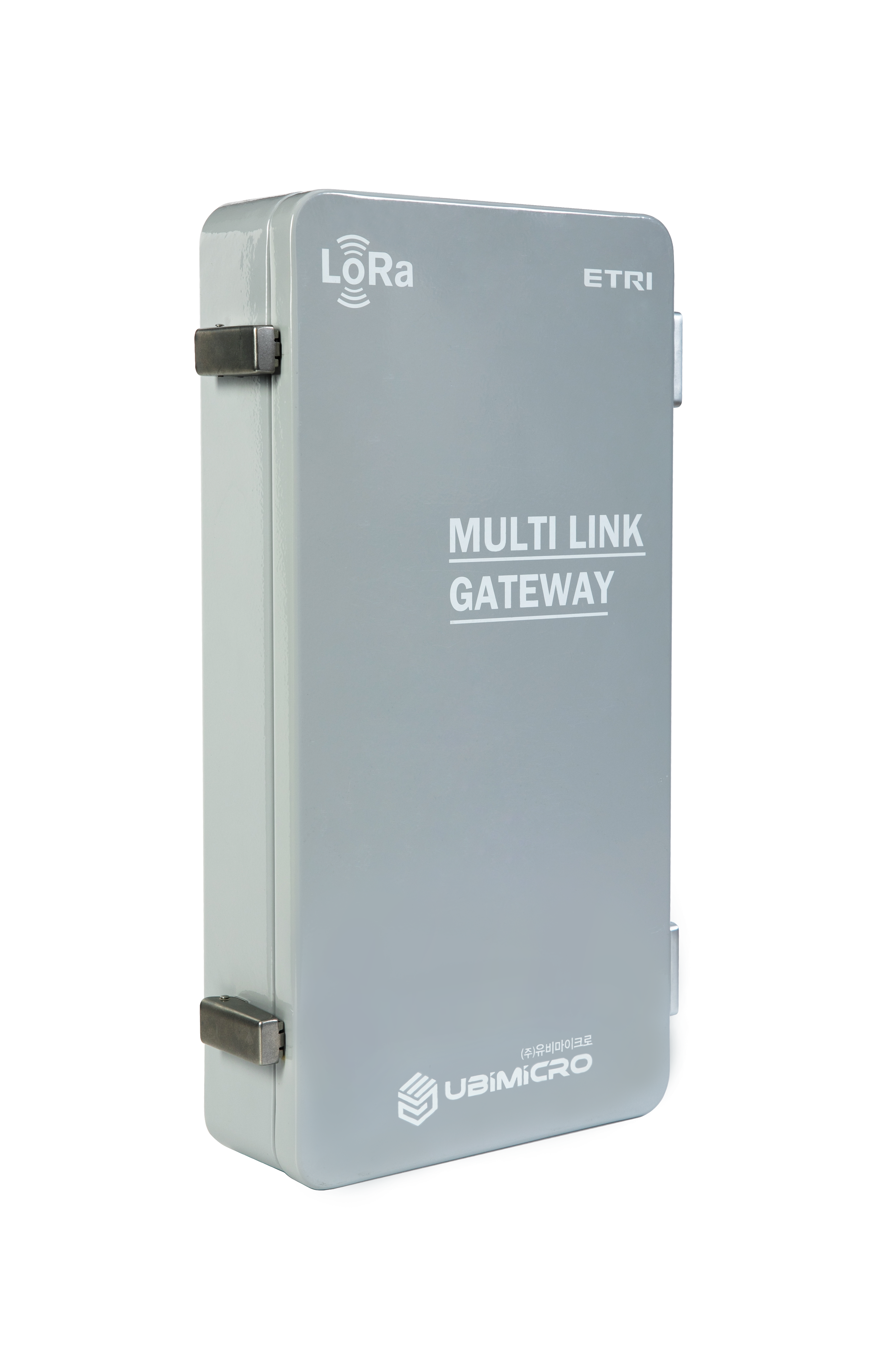

LoRa Gateway

LoRa gateway

  • Maximum communication distance: 10km or more (in open areas)
  • Supports 8 multi-channels
  • 900MHz ISM band frequency
    Interfaces: USB, Ethernet
  • Antenna gain: 10dbm
    Installable in constant temperature and humidity-controlled enclosure for outdoor use

This device receives data transmitted from sensor devices installed at work sites and relays the data via TCP/IP communication, and enables communication between networks using discrete communication protocols.

It enables network management for device connection/authentication and seamless data collection.

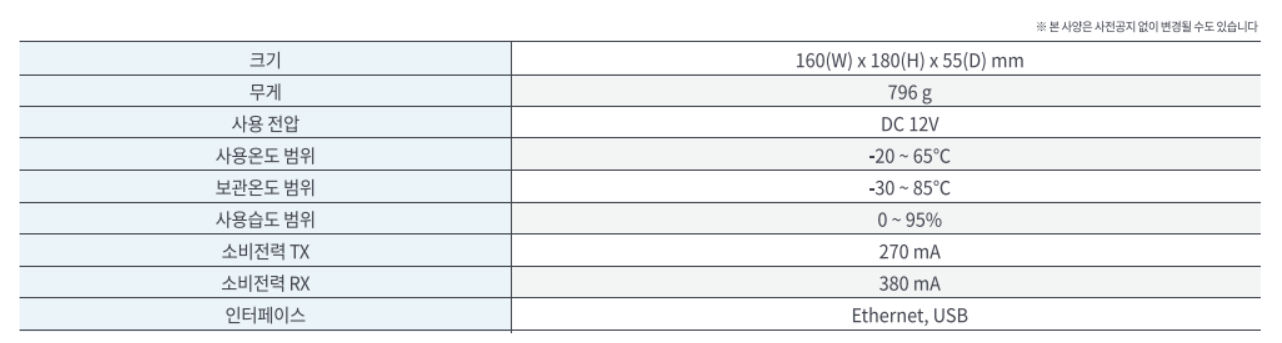

ㅇ Detailed Specifications

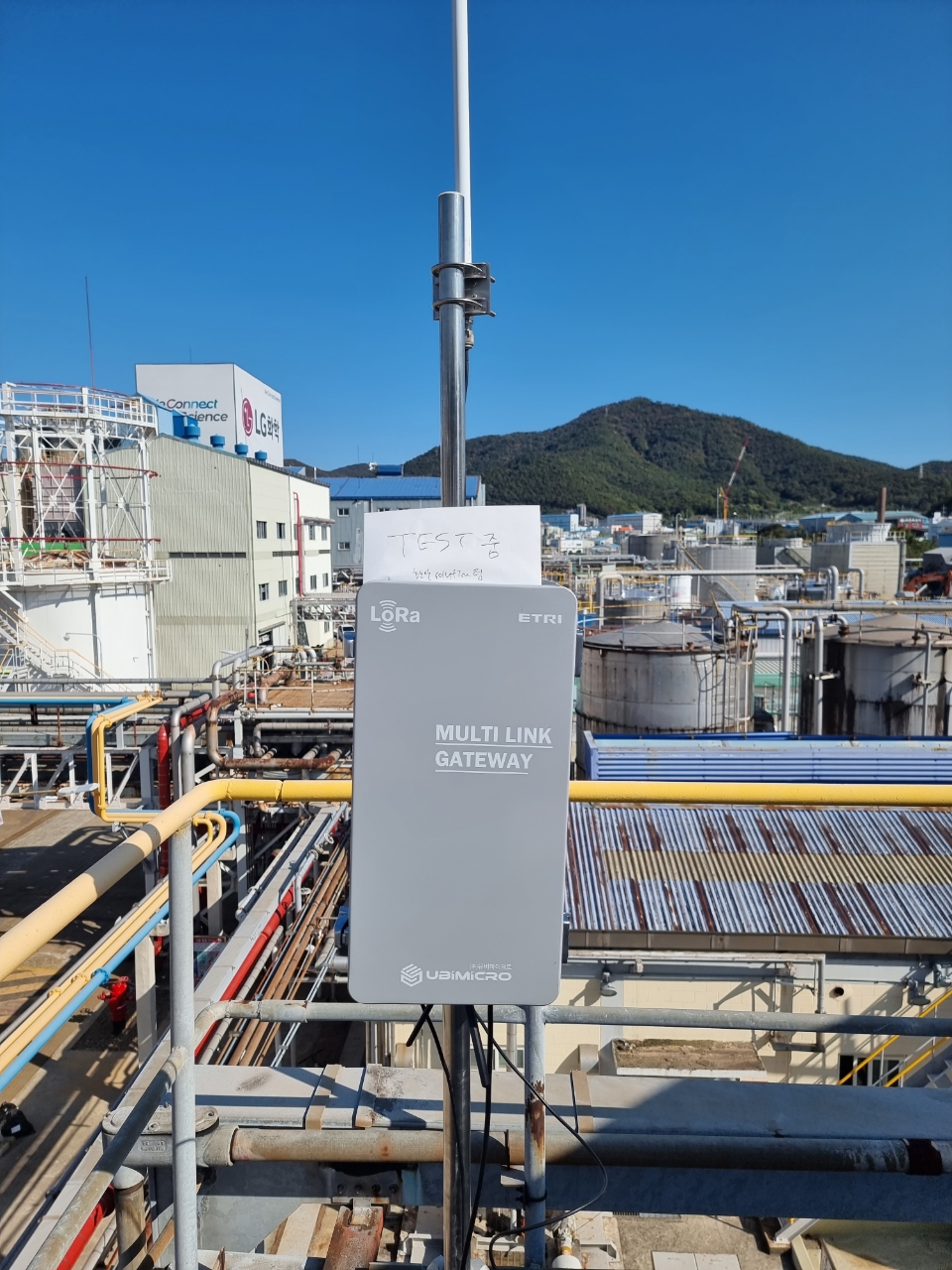

 Cases of establishment of substation in shipbuilding and offshore, petrochemical industries
